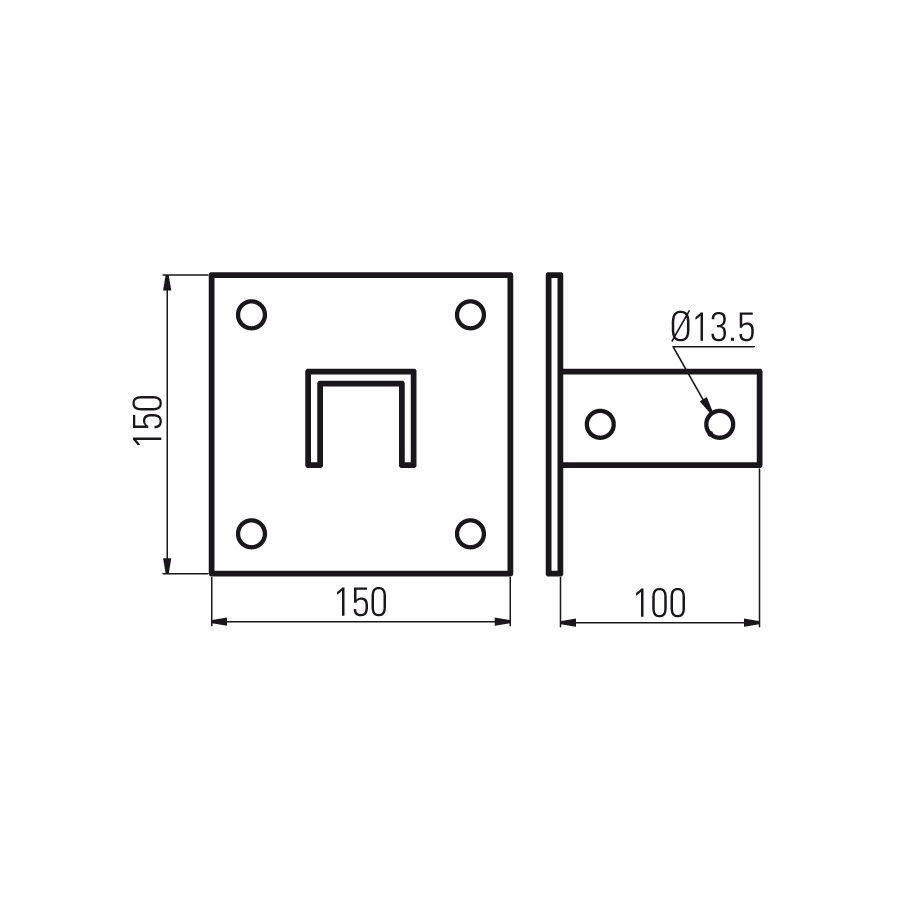

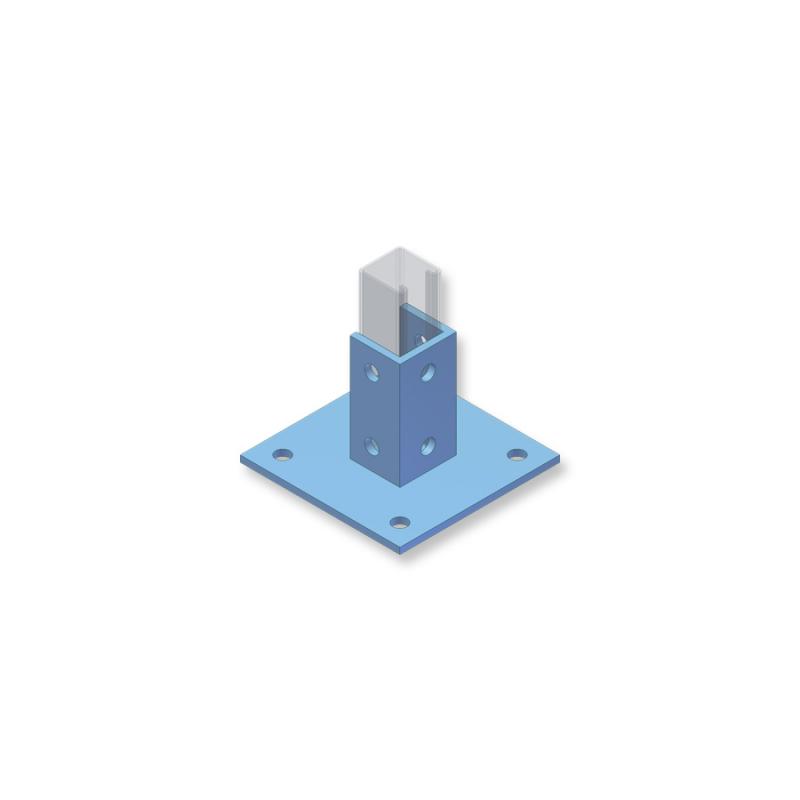

Ceiling and floor connection (10 holes)
brush Thickness Weight Technical Info Code
[mm] [Kg] Hole Ø dimension Eyelet Plate Ø
6,00 1,42 13,5 150x150 - F0 686 0000
5,00 0,92 13,5 120x120 12,5 x 16,5 F0 686 0001
List of Coatings
brush
03 Hot dip galvanizing - UNI EN ISO 1461
Ceiling and floor connection (10 holes)
