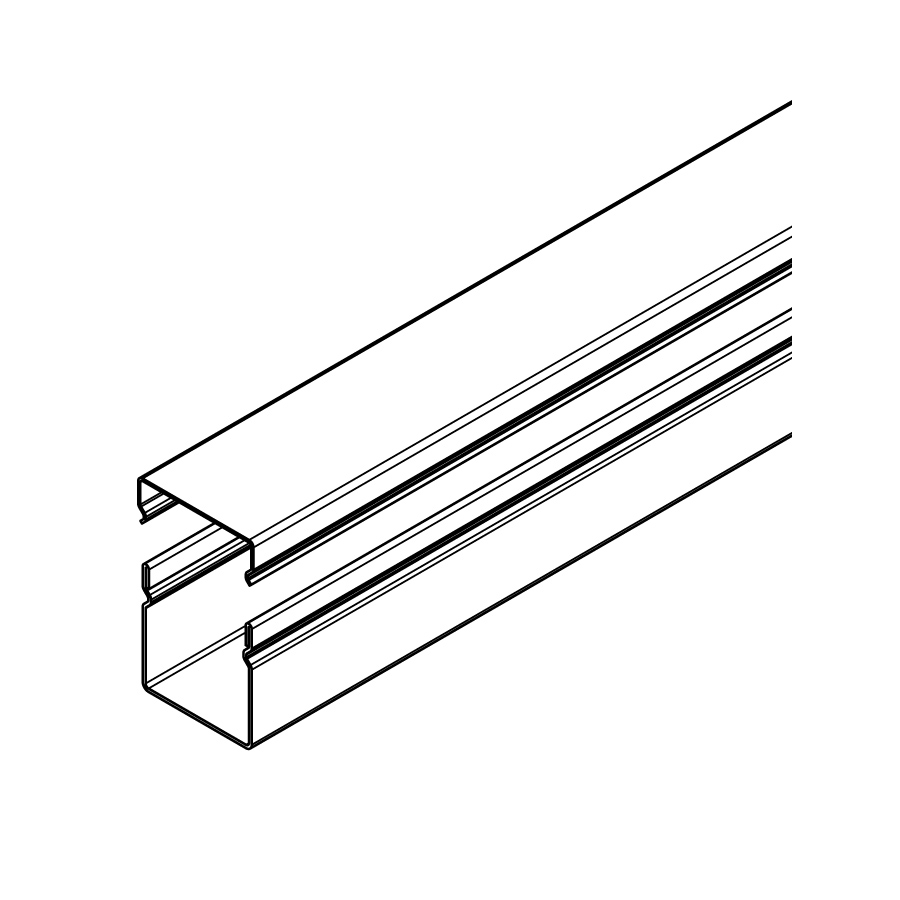

Cable tray with Cover
Dimension brush Thickness Weight Technical Info Code
W (B) H [mm] [Kg/m] L
25 25 0,80 0,81 2000 C0 012 2525
40 25 0,80 1,00 2000 C0 012 2540
30 30 0,80 0,94 2000 C0 012 3030
40 40 0,80 1,20 2000 C0 012 4040

Dimensione 60x60 upon request

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Metal mini trunking

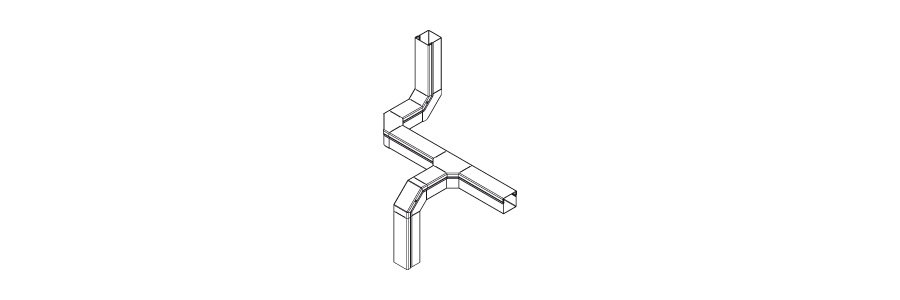

This innovative product is placed at the disposal of machine tool constructors, electricians and all those who require felibility and the possibility to inspect and easily and safely transport the distribution of electric, hydraulic and pneumatic cables, etc., on machines, transfer machines and industrial furnaces. It has been designed and built to provide technical solutions for the creation of linear and twisted systems with modular elements.

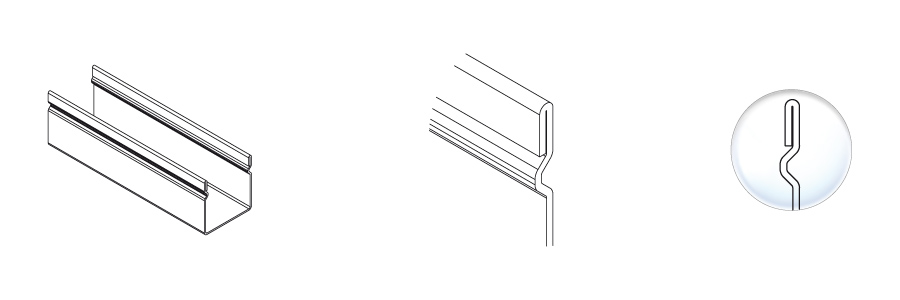

Accident prevention profile

The accident prevention profile is guaranteed by the fact that it is folded inside the section of the trunking, avoiding any roughness and improving strength.

Cable tray with Cover
