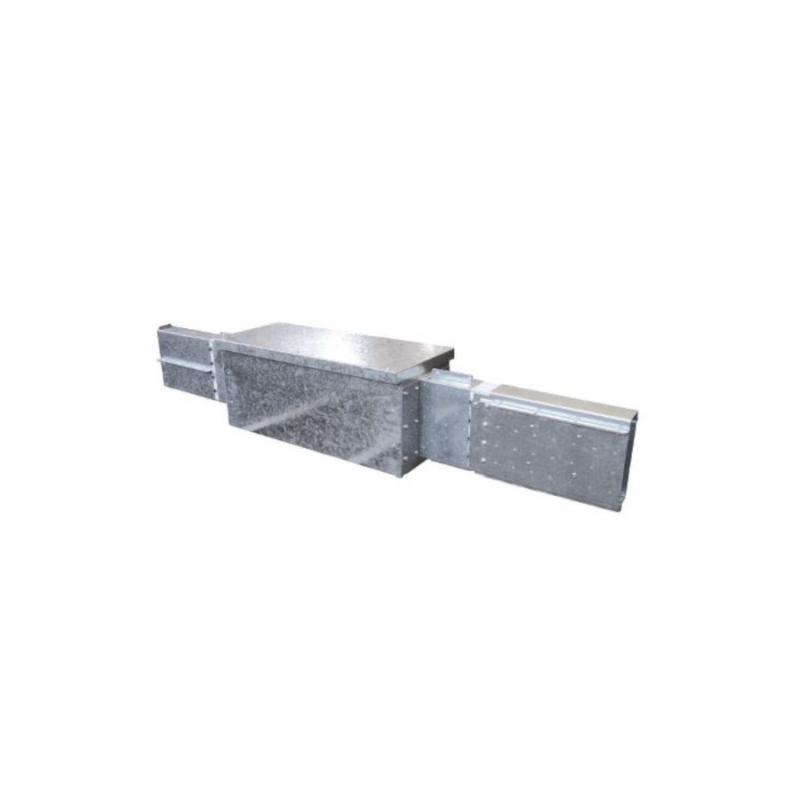

250A-400A-630A-800A intermediate feed unit
Dimension Weight Technical Info Code
W (B) H [Kg/pcs] In (A) No.Poles
610 200 28,00 250A 3P+N+T ACW BPG 250A
610 200 29,20 400A 3P+N+T ACW BPG 400A
610 200 40,00 630A 3P+N+T ACW BPG 630A
610 200 48,00 800A 3P+N+T ACW BPG 800A
In accordance to:

CEI EN 61439-6 / IEC 61439-6

250A-400A-630A-800A intermediate feed unit
